Detailed information

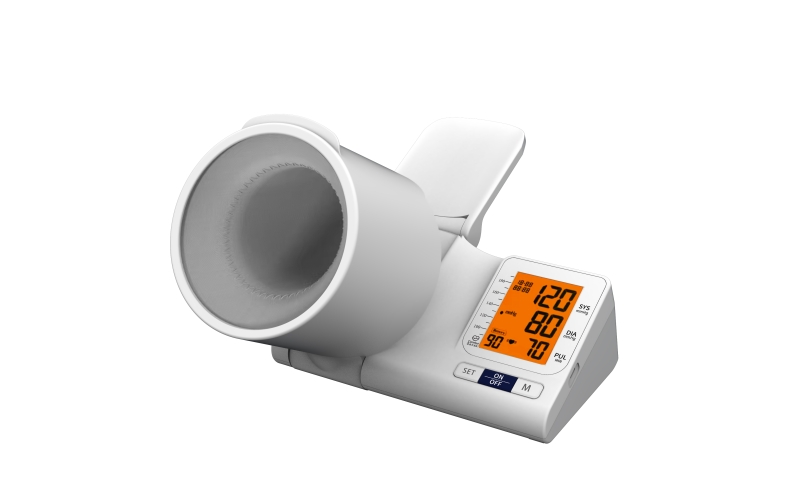

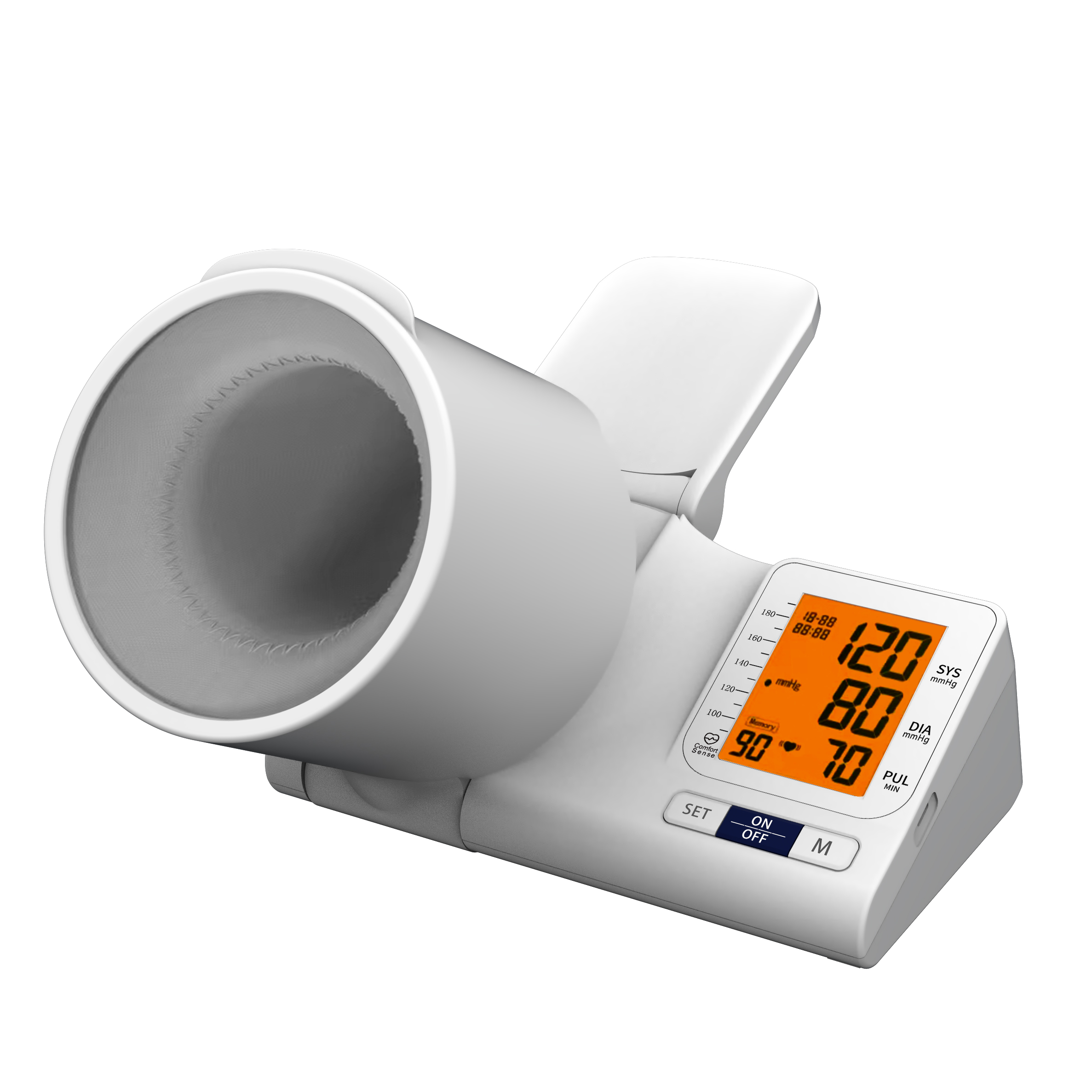

Product name Arm cylinder Blood Pressure Monitor（BP-D01）
Weight Approx. 1130g (excluding battery)
Size 256mm*178mm*209mm
Main feature
Please read the product instructions carefully or purchase and use under the guidance of medical personnel
Manufacturer: Real Fantasy (Shenzhen) Technology Co., LTD
Address: 3rd Floor, Building 3, Zhongsheng Huaying Science Park, No.169 Xinmu Road, Longgang District, Shenzhen, Guangdong, China
Seller: Real Fantasy (Shenzhen) Technology Co., LTD
Address: 3rd Floor, Building 3, Zhongsheng Huaying Science Park, No.169 Xinmu Road, Longgang District, Shenzhen, Guangdong, China
Scope of application: Used to measure human body temperature and object temperature
Product name | Arm Blood Pressure Monitor (D01) |
Display method | LCD digital display |
Test principle | oscillography |
Blood pressure measurement range | 0 mm Hg - 280 mm Hg(0.0 kpa - 37.3 kpa) |
Pulse measuring range | 40 times/min to 195 times/min |
Measurement accuracy | Pressure :±3mmHg (+ 0.4kpa) Pulse :+ 5% |
supercharge | Automatic pressurization by air pump |
decompression | Automatic exhaust method by fixed discharge pressure reduction |
venting | Automatic quick exhaust via solenoid valve |
| Memory set | 2*99 sets of memories |
Safety structure | When more than 300mmhg, the solenoid valve is used for rapid exhaust |
| Automatic shutdown | Automatic shutdown within 60 seconds without any operation |
Power type | 6VDC 4*AA 1.5V 5 battery |
Size | 256（L）× 178（W）× 209（H）mm |
Weight | Approx. 1130 g (battery not included) |
| Attachment | 1* manual, 1* charging cable |
Use temperature and humidity | Temperature :5°C to + 40°C Humidity: 15% to 80% |
Store temperature and humidity | Temperature :-20°C ~ + 55 °C Humidity: 10%~93 |
Atmospheric pressure range | 80KPa-105KPa |
